MARSHALL MECHANICAL MACHINE 30 kN
Ruggedly constructed with frame to encompass the strain and loads, easy to use, it is designed to operate with the minimum of maintenance.
Platen rate is 50.8 mm/minute also maintained under load thanks to an overpowered electric motor. The applied load is measured by a precision proving ring 30 kN capacity incorporating a stem brake holding the maximum reading and it is supplied with relevant
calibration certificate. The machine includes an electric device for automatic stop when reaching the max capacity load of the proving ring, so as to prevent any overload damage, limit switches stopping the platen at max. and min. excursions.
The unit is supplied complete with load ring 30 kN capacity, stability mould flow meter with dial gauge.
Power supply: 230 V 1 ph 50 Hz 750 W
Dimensions: 410x400x1110 mm
Weight: 110 kg
WHEEL TRACKING APPARATUS, MATEST PRODUCTION
This test, developed in laboratory, consists in evaluating the deformation (rut) depth of a bituminous mixture subjected to cycles of passes of a loaded rubber wheel under constant and controlled temperature conditions.
To perform the test, a wheel tracking apparatus is used to simulate the effect of traffic and to measure the deformation susceptibility of the bituminous sample.
Matest wheel tracker performs the test as per procedures A and B (6 or 2 tests), clearly specified by the EN Standard.
Technical specifications
- The machine fully satisfies both EN 12697-22 and BS 598:110 Specifications.
- Travel of the table: 230 +/- 5 mm
- Table cycle frequency: adjustable 15 to 40 cycles per minute.
- Hard rubber tyred wheel having outside diameter 200 mm
- Wheel load on the sample: 700N +/-10N (EN 12697-22) or 520N (BS 598:110). The load is applied on the sample through a lever.
The effective load applied on the sample can be adjusted by micrometrical weights positioning.
- Continuous real time rut depth measurement (penetration of the wheel into the sample) through a linear transducer 40 mm travel by 0,01 mm accuracy.
- The test frame is made of robust aluminium alloy and it is contained in a climatic cabinet with adjustable temperature from 30 to 65°C. +/- 1.0°C.
The cabinet is equipped with two doors with insulated glass for inspection
- The sample table has dimensions: 400 x 390 mm and can accept rectangular slabs of several sizes:
305 x 305 mm, 50 or 100 mm high
305 x 400 mm, 50 or 100 mm high
200 mm dia. core samples, 50 mm high
The sample confinement frames are not included and have to be ordered separately (see accessories)
- Matest wheel tracker accepts also samples with dimensions up to 400 x 500 mm, 180 mm high (this mould can be compacted with Matest Roller Compactor)
- The machine is supplied complete with adaptors for a correct mould positioning and locking
- The wheel tracker is equipped with 3 temperature probes:
1 probe, connected to the thermoregulator, for the control andadjustment of the cabinet temperature.
2 probes for temperature measurement inside the specimen.
Power supply: 230V 50/60Hz 1ph 2200W
Power rating of the table: 500 W
Dimensions: 1580 x 650 xh 1790 mm
Weight: 400 kg approx.
ROLLER COMPACTOR
This Roller Compactor entirely developed and manufactured by Matest, fully operates with the electro-mechanical system, and therefore “does not require any air source (compressor) or hydraulic pressure”.
It is used to produce representative sample slabs of several dimensions of bituminous mixtures laid and compacted in the roads.
The compaction is performed through a segmented roller with alternated operated rotation simulating the on-site action of a street roller.
Slabs are compacted up to the selected density and are then compatible for rut tests with B038 Matest Wheel Tracker.
The slabs can also be cored or cut off to obtain cylinders and beams for bending fatigue, indirect tensile, static and dynamic creep, stiffness, 4-point tests, etc.
TECHNICAL SPECIFICATIONS:
- Possibility to use standard or heated roller segments of different sizes (see accessories): width up to 400mm, length up to 500mm and radius 490mm, with obtainable slabs dimensions of:
320x260mm thick up to 180mm
305x305x25 to 100 mm thick
400x305x25 to 100 mm thick
500x400mm, thick up to 180mm
- Vertical force selectable up to max. 38 kN
- Programmable density target compaction
- Policarbonate safety enclosure to CE Directive
- Simple and quick roller and mould positioning
- Easy to maintain
- Power supply: 230V 50/60Hz 1ph 550W
- Dimensions: 2200x1030 xh 1880 mm (2410mm with opened guard)
- Weight: 1300 kg
MATEST GYRATORY COMPACTOR
Matest Gyratory Compactor is used to simulate and reproduce the real compaction conditions under actual road paving operations, hence determining the compaction properties of the asphalt.
Such compaction is achieved by combining the rotary action and the vertical resultant force applied by a mechanical head.
The Compactor comprises a highly rigid steel frame ensuring excellent angle control.
Load is applied by an electro-pneumatic cylinder, servo-controlled by a precision pressure regulator; the height is measured by a linear transducer.
Gyratory motion is generated by an eccentric high precision system allowing an easy set up with precision and constant angle of gyration.
The rotation speed is controlled by an inverter through on board computer control.
Using the proper perforated mould, the Compactor is able to run tests also on cold emulsified asphalt mix.
The acquired results are also employed in the investigation of volumetric and mechanical characteristics of the asphalt mix.
MAIN FEATURES:
- Highly rigid steel frame ensuring excellent angle control.
- Electro-pneumatic action with servo-controlled regulator.
- Electronic control unit with touch screen color display, that runs like a standard PC based on Windows operating system.
The touch-screen icon interface allows an easy set up of the parameters and immediate automatic execution of the test, data acquisition, processing, graphics and file.
Direct connection to Intranet (connection to a LAN network) and Internet to establish a remote communication and receive an immediate diagnostic analysis of the potential problem from Matest technicians, or for software updates.
Unlimited memory storage with: 2 USB ports, 1 SD card.
Power supply: 230V 1ph 50Hz 1000W
Dimensions: 640x500xh1000mm
Weight: 240 kg
UNIVERSAL EXTRUDER
Used to extrude samples having dia. 4”, 6”, 100 mm, 150 mm. It can therefore extrude CBR, Marshall and Proctor specimens.
The extruder is actuated by a 50 kN hydraulic jack, having ram travel of 190 mm + 170 mm screw.
Supplied complete with adaptors.
Dimensions: dia. 300x500 mm
Weight: 30 Kg
MARSHALL COMPACTION MOULD, COMPLETE, DIA. 4''
Inside diameter 101,6 mm (4”).
Steel manufactured, plated against corrosion.
Weight: 3 kg
Consisting of:
B030N MOULD BODY only. Weight: 1200 g
B030-01N FILLING COLLAR only (ASTM, EN, CNR). Weight: 800 g
B030-02N BASEPLATE only. Weight: 1000 g
Note: French NF P98-251-12 Spec. requires the filling collar with a small different dimension, but fitting perfectly the mould body and the baseplate.
B030-01NF FILLING COLLAR only (NF P98-251-2). Weight: 800 g
B030-06 BASE PLATE with handles (alternative to mod. B030-02)
MARSHALL COMPACTOR, HAND OPERATED, FOR MOULDS DIA. 4''
Similar to mod. B033, but the hammer is lifted and released manually.
Dimensions: 320x320x1600 mm
Weight: 60 kg approx.
The assembly consists of:
B034 COMPACTION HAMMER, with 4,53 kg sliding weight, guided on a shaft.
Plated against corrosion
Weight: 10 kg
B036 COMPACTION PEDESTAL, consisting of a wooden block, capped with a steel plate.
Complete with mould clamp device.
Plated against corrosion.
Weight: 42 kg
B037 SUPPORT and hammer guide.
AUTOMATIC MARSHALL COMPACTOR FOR MOULDS 4" DIA.
This ruggedly constructed machine has been designed to eliminate the laborious process of hand compaction. It automatically compacts the specimen and stops off the motor after the preset number of strokes has been completed on the automatic digital display counter. The trip mechanism is structured so that the hammer falls at the same height at every stroke. The unit incorporates a compaction wooden pedestal. The drive mechanism lifts the 4,53 kg. compaction hammer, plated against corrosion, to the height of 457 mm. and allows free fall at 60 blows per minute.
This compactor is suitable only for Marshall moulds dia. 4“.
The compactor is supplied complete “except” for the mould which must be ordered separately.
It cannot be sold in CE markets without safety guards (see mod. B033-01 and B033-03).
Power supply: 230 V 1 ph 50Hz 300 W
Dimensions: 540x400x1600 mm
Weight: 95 kg
MARSHALL AUTOMATIC EN (IMPACT) COMPACTOR
This ruggedly constructed apparatus automatically compacts the bituminous sample and stops off the motor after the preset number of blows has been completed on the automatic digital display counter.
The trip mechanism is structured so that the sliding hammer falls at the same height at every blow.
The mould is held in position by a fast clamping device.
The compactor includes a vibrated concrete base where a laminate hardwood block is mounted.
Sliding mass weight: 4535 ± 15 g
Free fall height: 457 ± 5 mm
Blow frequency: 50 blows in 55/60 seconds.
The machine is equipped with safety door, conforming to CE Safety Directive.
When opened it stops automatically and cannot operate.
All moving parts are quickly/easily accessible for maintenance.
The compactor is supplied complete, “except for the mould” that must be ordered separately.
Power supply: 230 V 1 ph 50 Hz 750 W
Dimensions: 500 x 500 x 1890 mm
Weight: 220 kg
MIXER 5 LITRES CAPACITY
This bench mounting Mixer is utilized for mixing samples of bituminous materials.
Thanks to its double mixing action (shaft and planetary) it ensures uniform mixing. Double speed selection (140 or 285 rpm).
The mixer is supplied complete with stainless steel bowl, but “without” whisk to be ordered separately (see accessories).
It cannot be sold in CE markets without security guards (see mod. E095).
Power supply: 230 V 1 ph 50 Hz 800 W
Dimensions: 450x400x480 mm
Weight: 50 Kg
MIXER 20 LITRES CAPACITY
This large capacity mixer has been designed to mix bituminous samples for compaction tests, Marshall and tensile splitting test and for other tests where uniformity is required. Thanks to the planetary action this mixer ensures a complete and uniform mixing. The machine is provided with a variable speed drive allowing to set a wide range of speeds. The stainless steel cover can be lifted to inspect the boxl, and in this case the motor automatically turns off to prevent accidents to CE safety Directive.
A timer allows to select the mixing time or the continuous mixing.
The mixer is supplied complete with stainless steel bowl 20 litres capacity, but "without" whisk beater,"without" coupling and "without" electric heater that must be ordered separately (see accessories).
Power supply: 400V 3ph 50Hz 1,1kW (230V 1ph on request)
Dimensions: 489x693xh 944 mm
Weight: 110 kg approx.
PERMEAMETER
Mainly used in situ to perform and to check the permeability and drainage on road carpets, concrete pavements, tamped earth etc.
The test consists in filling the cylinder with water, after ermetically positioning it on the carpet under test and then in calculating the time needed by a certain quantity of water to be absorbed by the same. The instrument is composed of a bottomless plexiglass
cylinder 140 mm inside diameter, fitted on a base.The cylinder has two black calibration lines: one at zero point and one at 250 mm.
Dimensions: 260x260x425 mm
Weight: 8 kg
MELTING POT
MELTING POT, capacity: 5 litres
Temperature range: +50 to +350°C., accuracy: +/- 1,5°C.
Complete with pilot lamp, fully isolated to CE Safety Directive.
Internal dimensions: dia. 200 mm x 160 mm
230V 1ph 50/60Hz 800W.Weight: 3 kg

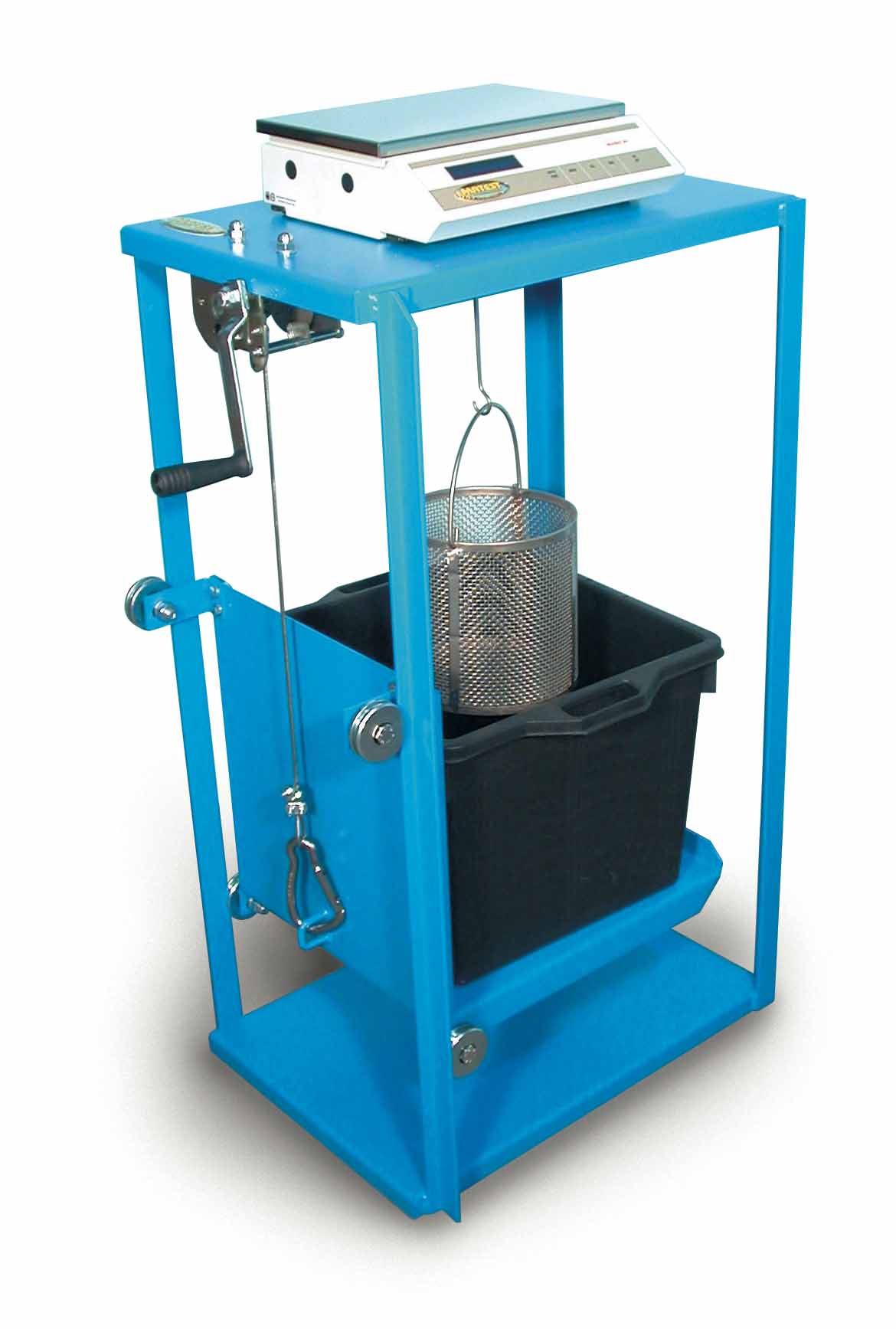

SPECIFIC GRAVITY FRAME
Used for specific gravity determination of concrete, aggregates etc.
To be used with a suitable electronic balance fitted with an under - hook facility.
Robust steel frame made, it incorporates on its lower part a plat-form adjustable in height, holding a water container, and allowing the specific gravity test.
The balance is not included and must be ordered separately.
Dimensions: 510x510x1150 mm
Weight: 50 kg
